LA032-10 Lever Chain Hoist 10' lift 3.5 Ton Capacity
SKU: LA032-10U All Material Handling
Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 3-1/2 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 20.5", Hoists & Winches, Lever Length: 16.5", Lift: 10', Load Limiter: Load Limiter Option, Made in the USA: USA Assembled, Made in the USA: USA-made Chain, Manual Hoist Option: Lever, Overload Device: Yes, Reeving: 1 Part Reeving

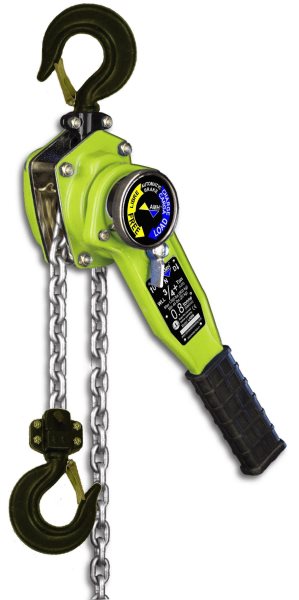

3.5 Ton AMH LA Series Lever Chain Hoist
All Material Handling's quality imported LA lever chain hoist offers premium features for value pricing. All units are assembled and tested in the US. The LA Series manual chain hoist is lightweight and durable, featuring steel construction, a powder coated finish and plated external components for corrosion resistance. The LA032-10 offers a 3.5-ton capacity with 10 feet of lift. The series is dual rated with more capacity choices available.
Features of LA032 Lever Chain Hoist
All Material Handling’s hoist model #LA032-10 features 3-1/2 ton capacity and 10 ft of lift. Key features of the LA Series manual chain hoists include:
Capacities of 3/4 ton to 10 tons with standard lifts of 5, 10, 15 and 20 ft. This model is dual rated with Metric ton capacities from .8T to 9 Metric tons.
Premium USA made load chain - grade 80, Zinc plated alloy.
Double Pawl Brake - self-adjusting double pawl disc type mechanical load brake insures position load control.
Horseshoe shaped chain guard allows operation in any orientation.
Optional Overload Protection is a one directional clutch that will only slip in the lift direction
Meets industry standards including: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9
- Suitable in Some Hazardous Environments - Contact us to discuss your NEC rated hazardous location application.
AMH Lever Chain Hoists for Sale
Shupper-Brickle is an authorized distributor for All Material Handling’s lever chain hoists. Contact us for hoist sales, service or if you are interested in upgrading your LA series lever chain hoist with any of the following:
- Shipyard or self-locking hook options
- Custom chain lifts
- Optional overload protection device
To place your order for the 3.5 ton LA032 lever chain hoist, contact us through this website or call 800-642-7263 to speak with one of our experienced sales engineers.
Don't see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide equipment diagnosis and repair at your facility in the Mid-Atlantic States or in our repair workshop in Clarksburg, NJ.
