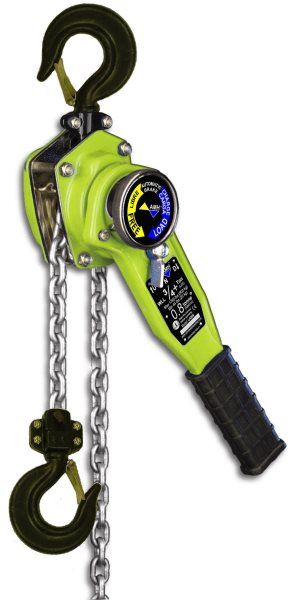

AMH 2.25 Ton LA Series Lever Chain Hoists
All Material Handling's quality imported LA lever chain hoist offers premium features for value pricing. Featuring steel construction, a powder coated finish and plated external components, these lever chain hoists are corrosion resistant, lightweight and durable. The LA020-10 can lift a maximum capacity of 2.25 tons and has a 10-foot lift. The LA series hoists are dual rated and are available in other capacities. All units are assembled and tested in the US.
Key Features of the LA020-10 Lever Chain Hoist
All Material Handling hoist model #LA020-10 features 2-1/4 ton capacity and 10 ft of lift. Key features of the lever chain hoists include:
Capacities of 3/4 ton to 10 tons with standard lifts of 5, 10, 15 and 20 ft. This model is dual rated with Metric ton capacities from .8T to 9 Metric tons.
Premium USA made load chain - grade 80, Zinc plated alloy.
Double Pawl Brake - self-adjusting double pawl disc type mechanical load brake insures position load control.
Horseshoe shaped chain guard allows operation in any orientation.
Optional Overload Protection is a one directional clutch that will only slip in the lift direction.
Meets industry standards including: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9.
Suitable in Some Hazardous Environments - Contact us to discuss your NEC rated hazardous location application.
AMH Hoisting Equipment for Sale
Shupper-Brickle Equipment is an authorized distributor for All Material Handling. We sell and service their hoisting equipment, including the 2.25-ton LA020-10. Contact us for hoist sales, service or upgrades and special features available for All Material Handling’s LA lever chain hoist, such as:
- Shipyard or self-locking hook options
- Custom chain lifts
- Optional overload protection device
To place your order for the 2.25 ton LA020-10 lever chain hoist, contact us through this website or call 800-642-7263.
Don't see what you need? With over 50 years in the business, we know hoisting equipment! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide equipment diagnosis and repair at your facility in the Mid-Atlantic States or in our Clarksburg, NJ repair workshop.
