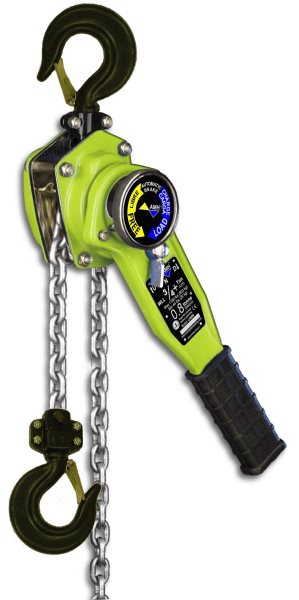

LA016-05 Lever Chain Hoist 5' lift 1.75 Ton Capacity
SKU: LA016-05U All Material Handling
Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 1-3/4 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 15.7", Hoists & Winches, Lever Length: 14", Lift: 5', Load Limiter: Load Limiter Option, Made in the USA: USA Assembled, Made in the USA: USA-made Chain, Manual Hoist Option: Lever, Overload Device: Yes, Reeving: 1 Part Reeving
Quality Imported Manual Lever Chain Hoists
All Material Handling's quality imported LA lever chain hoist offers premium features with value pricing. All units are assembled and tested in the United States and feature steel construction, a powder coated finish and plated external components. The manual chain hoists resist corrosion, are lightweight and durable. The LA lever chain hoists are dual rated and are available in a variety of lift capacities. LA016-05 offers a 1.75-ton capacity with 5 feet of lift.
Key Features of AMH LA016-05
All Material Handling’s Model #LA016-05 features 1-3/4 ton capacity and 5 ft of lift. Other key features of this manual lever chain hoist include:
Capacities of 3/4 ton to 10 tons with standard lifts of 5, 10, 15 and 20 ft. This model is dual rated with Metric ton capacities from .8T to 9 Metric tons.
Premium USA made load chain - grade 80, Zinc plated alloy.
Double Pawl Brake - self-adjusting double pawl disc type mechanical load brake insures position load control.
Horseshoe shaped chain guard allows operation in any orientation.
Optional Overload Protection is a one directional clutch that will only slip in the lift direction.
Meets industry standards including: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9.
- Suitable in some Hazardous Environments - Contact us to discuss your NEC rated hazardous location application.
Buy Quality Imported Manual Chain Hoists
Shupper-Brickle Equipment is an authorized distributor of All Material Handling. We sell and service their hoisting equipment, including the imported LA series lever chain hoists. Contact us for hoist sales and service or to upgrade your LA lever chain hoist with special features such as:
- Shipyard or self-locking hook options
- Custom chain lifts
- Optional overload protection device
To order your 1.75 LA016-05 imported lever chain hoist, contact us through this website or call us at 800-642-7263.
Don't see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide onsite equipment diagnosis and repair at facilities in the Mid-Atlantic States or in our Clarksburg, NJ repair workshop.
