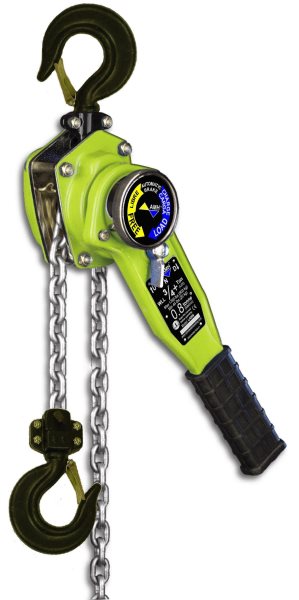

LA010-10 Lever Chain Hoist 10' lift 1 Ton Capacity
SKU: LA010-10U All Material Handling
Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 1 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 13.4", Hoists & Winches, Lever Length: 12.1", Lift: 10', Load Limiter: Load Limiter Option, Made in the USA: USA Assembled, Made in the USA: USA-made Chain, Manual Hoist Option: Lever, Overload Device: Yes, Reeving: 1 Part Reeving
1 Ton AMH LA Manual Chain Hoists
All Material Handling's quality imported LA lever chain hoist offers premium features for value pricing. The manual chain hoists are lightweight and durable. They feature all steel construction with a corrosion resistant powder coated finish and plated external components. All units are assembled and tested in the United States. They are dual rated and available in a variety of capacities ranging from ¾ ton to 10 tons. LA010-10 is the 1-ton model with a 10-foot lift.
AMH LA Series Lever Chain Hoist Features
Model #LA010-10 of the LA Series of lever chain hoists from All Material Handling features 1 ton capacity and 10 ft of lift. Other key features of these manual chain hoists include:
Capacities of 3/4 ton to 10 tons with standard lifts of 5, 10, 15 and 20 ft. This model is dual rated with Metric ton capacities from .8T to 9 Metric tons.
Premium USA made load chain - grade 80, Zinc plated alloy.
Double Pawl Brake - self-adjusting double pawl disc type mechanical load brake insures position load control.
Horseshoe shaped chain guard allows operation in any orientation.
Optional Overload Protection is a one directional clutch that will only slip in the lift direction.
Meets industry standards including: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9.
- Suitable in Some Hazardous Environments - Contact us to discuss your NEC rated hazardous location application.
AMH LA Series Manual Chain Hoists for Sale
Shupper-Brickle Equipment is an All Material Handling authorized distributor. We sell and service their quality hoisting equipment, including the imported LA series manual lever chain hoists. Contact us for hoist sales and service or to upgrade your LA lever chain hoist with available special features including:
- Shipyard or self-locking hook options
- Custom chain lifts
- Optional overload protection device
To order the 1 ton LA010-10 lever chain hoist, contact us through this website or call us at 800-642-7263.
Don't see what you need? With over 50 years of industry experience, we know hoists! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide equipment diagnosis and repair onsite to Mid-Atlantic States facilities or in our repair shop in Clarksburg, NJ.
