Andrew T. Litecky4/ 1/20

Updated: October 4, 2021 - Welcome to The Hoist Guy's Blog, where our resident Hoist Guy, Andrew T. Litecky, shares his knowledge and experience of many years in the overhead material handling industry.  Today, he shares tips on quick ship hoists, bridge crane kits and overhead lift systems.

What to do When you Need a Hoist or Crane Quickly?

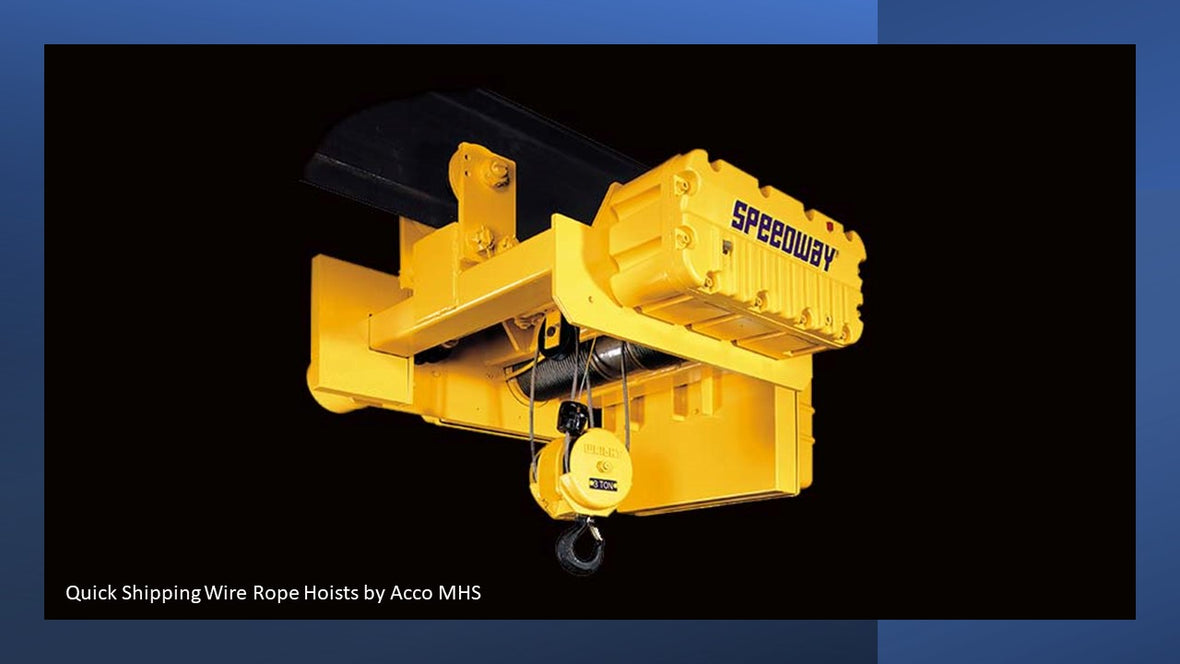

When you need a quick shipping hoist, we recommend ACCO MHS's rapid ship program for wire rope hoists and electric chain hoists Acco's Wright Workrated and Speedway models are some of the hoist guy's favorites for wire rope hoists. Quick shipping crane kits are also available. Contact us if you need a hoist, crane kit or below the hook device for quick shipment.

Quick Turn Around on Custom Fabricated Lifting Systems

But what if your overhead lifting situation is more complex and you’re crunched for time?

We recently took a call from a desperate operations manager of a galvanizing plant. He had just learned that his order to a major hoist manufacturer was delayed by 8 weeks. He desperately needed two hoists with an expedited delivery to keep up production and avoid a shutdown.

The Situation: Two 5-Ton Hoists for a PT System in 10 Days

The application was complicated by a several factors. It required a 5 ton capacity hoist with thirty feet of lift. There was high heat, due to the galvanizing line and a patented track system with 90-degree curves, a 6’ radius, and web mounted conductor bar. The manager requested we supply two hoists that could handle these requirements and would reach him in 10 days.

The Solution: An Experienced Industrial Hoist Distributor with Custom Capabilities

With five decades in the industry, we reviewed our network of overhead material handling suppliers and located manufacturers with equipment in stock that met all requirements. We pulled these components together and pushed an engineered fabrication through our crane shop to get the delivery out on time in 10 days.

Here’s the breakdown of events that led to us delivering the custom engineered hoists on time:

Days 1-3:

To solve the customer’s problem, we started with a Street Crane H-4 duty hoist with a liftspeed of 20/6 FPM and a standard lift of 32 ft. The standard temperature range is good for 120 degrees Fahrenheit. The hoists were stocked in Houston, and with expedited shipping, reached us by day 3.

Days 3-5:

The Street factory-installed controls were left in place, but the trolley wheels were designed for a straight wide flange beam. Since the customer’s application ran on patented track, the wheels were removed, and we prepared the unit to run on a Cleveland Tramrail drive and idler trolleys that are engineered to negotiate a 6’ radius.  Our fab shop adapted the hoist by using a load bar welded to a specialized frame and then bolted to the hoist, using the holes left by the trolley wheels. The fabrication in our crane shop was finished and painted in about 5 working days.

Days 6-9:

The Cleveland Tramrail drive and idler trolleys were received at our shop by day 6. We wired the drive to the existing Street trolley variable frequency drive and installed the trolley wheels. Final assembly and wiring took place on Day 8 and testing was done on day 9.

Day 10:

Our very relieved customer receives the equipment and avoided a shut down.

Industrial Hoist Sales & Custom Engineering

After 50 years in the business, we know overhead material handling! We’re not just a supplier but an experienced partner in overhead lifting systems and we’ve helped thousands of customers find the right equipment. We sell-to manufacturers, end-users, resellers, and engineering firms. Our in-house team of sales engineers, fabricators and certified technicians solve both routine and unusual overhead lifting challenges. Contact us for more information on your standard or specialized application. We will work to find the equipment that meets your budget, specifications and deadlines.
