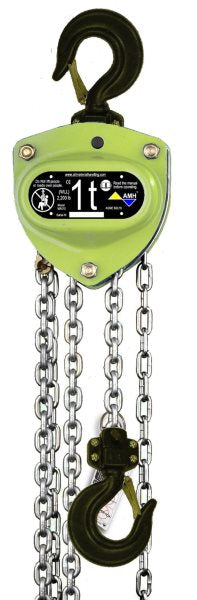

½ Ton MA Series Manual Chain Hoist
All Material Handling’s MA Series hand chain hoists offer quality and value in capacities of ½ to 30 Tons, with standard lifts of 10, 15 or 20 feet. The MA005 offers a half-ton capacity with 10 ft of lift. The model MA hand chain hoists offer increased efficiency through an additional pinion shaft bearing and close tolerances. This lightweight and durable, all steel construction hoist features a plated frame and guide components with a rounded hand chain entrance for zinc plated chains.
Key Features of the MA005 Hand Chain Hoist
Model # MA005 features ½-Ton capacity and 10 feet of lift. All Model MA hoists are assembled and tested in the USA. The maintenance manual is available in English, Spanish and French. Other key features of All Material Handling’s MA series hand chain hoists include:
Premium Grade 80 Zinc Plated Alloy Load Chain
Lightweight & Durable all steel construction with powder-coated finish and plated frame components to resist corrosion
Bolted Hook Blocks allow complete hook inspections
Self-adjusting Double Pawl Brake - This disc type mechanical load brake ensures positive load control
Rounded Hand Chain Entrance - Hand chain opening is formed with a radius for smooth operation
Optional Overload Protection is a one directional clutch that will only slip in the lift direction
Meets industry standards, such as ASM B30.21, OSHA, NASA-STD-87.19.19, ATEX rated EX II 3 GD C 11B 54 degrees CX (for limited use in hazardous locations)
AMH MA .5 Ton Manual Chain Hoists for Sale
As an authorized distributor for All Material Handling, contact Shupper-Brickle Equipment can assist with special features or upgrades such as:
- Self-Locking hook option
- Custom hand or load chain lengths
- Optional Overload Protection Device
To place your order for the MA005 .5 ton AMH manual chain hoist, contact us through this website or call 800-642-7263.
Don’t see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide hoist repairs at your location in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.
