LC060-10 Lever Chain Hoist, LC Series, 10 ft Lift, 6T capacity

$851.00

SKU: LC060-10 All Material Handling

Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 6 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 24.4", Hoists & Winches, Lever Length: 16.5", Lift: 10', Manual Hoist Option: Lever, Reeving: 2 Part Reeving
Get a Quote

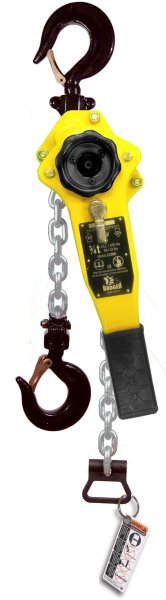

AMH LC Series Manual Chain Lever Hoists

Looking for an affordable lever hoist with all the best features? All Material Handling’s LC series chain lever hoist offers exceptional quality and value. The LC060-10 is a 6-ton capacity hoist with a 10-foot lift. Other LC Series hoists are available in capacities of ¾ ton to 6 tons and in standard lifts of 5, 10, and 20 ft.

LC Manual Lever Hoist Features

Model #LC060-10 features 6 ton capacity and 10 ft of lift.  All Model LC’s feature grade 80 zinc plated alloy chain. Every unit is proof tested at minimum of 1.25 WLL and shipped with a load test certificate as well as an operation manual in English, Spanish and French. Additional key features of LC series lever hoists include:

  • Easy One Hand Operation & Setup - Short ratchet strokes with a non-slip rubber grip lever and 360 degrees rotation requires minimal space for operation and requires 20-30% less pull force than others.
  • Operation in any orientation is assured by the horseshoe-shaped chain guard, keeping the load chain in contact with the lift wheel.
  • Superior internal parts are heat-treated for strength and reliability. All gearing is fully enclosed to protect from contamination and the lift-wheel is machined for smooth operation.
  • Automatic Weston-style mechanical load brake with double pawls and asbestos-free brake discs never require adjustment. The brake will react to inertia by descending the load (regardless of operator setting).
  • Operational Overload Protection at approximately 175% WLL (working load limit)
  • Meets industry standards, including ASM B30.21, OSHA, NASA-STD-8719.9

AMH Manual Lever Chain Hoists for Sale

Shupper-Brickle Equipment is an authorized distributor for All Material Handling. Contact us for hoist sales and service or ask us if you need any of these special upgrades for the LC060-10:

  • Shipyard hook option
  • Custom chain lifts or bulk chain
  • Optional overload protection device

To place your order for the 6-ton LC Series Badger Lever Chain Hoist, contact us here or call 800-642-7263.

Don’t see what you need? With 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or service. We provide hoist repairs at your location in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.
