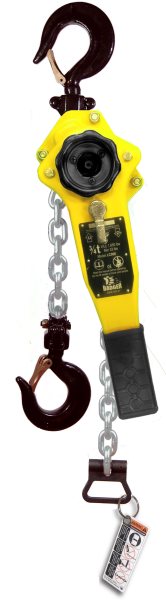

LC015-05 Lever Chain Hoist, LC Series, 5 ft Lift 1.5T capacity
SKU: LC015-05 All Material Handling
Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 1-1/2 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 15", Hoists & Winches, Lever Length: 16.5", Lift: 5', Manual Hoist Option: Lever, Overload Device: Yes, Reeving: 1 Part Reeving
Looking for an affordable lever hoist with all the best features? All Material Handling’s LC series offers exceptional quality and value.
The LC Series is available in capacities of ¾ ton to 6 tons and in standard lifts of 5, 10, and 20 ft.
Easy One Hand Operation & Setup - Short ratchet strokes with a non-slip rubber grip lever and 360 degrees rotation requires minimal space for operation and requires 20-30% less pull force than others.
Operation in any orientation is assured by the horseshoe-shaped chain guard, keeping the load chain in contact with the lift wheel.
Superior internal parts are heat-treated for strength and reliability. All gearing is full enclosed to protect from contamination and the lift-wheel is machined for smooth operation.
Automatic Weston-style mechanical load brake with double pawls and asbestos-free brake discs never require adjustment. The brake will react to inertia by descending the load (regardless of operator setting).
Operational Overload Protection at approximately 175% WLL (working load limit)
- Meets industry standards, including ASM B30.21, OSHA, NASA-STD-8719.9
Model #LC015-05 features 1-1/2 ton capacity and 5 ft of lift. All Model LC’s feature grade 80 zinc plated alloy chain. Every unit is proof test at minimum of 1.25 WLL and shipped with a load test certificate as well as an operation manual in English, Spanish and French.
Ask us if you need:
- Shipyard hook option
- Custom chain lifts or bulk chain
- Optional overload protection device
