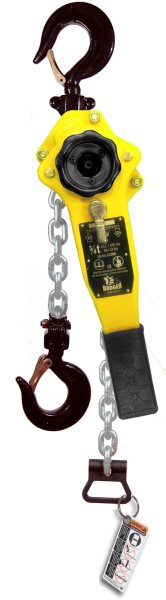

LC008-10 Lever Chain Hoist, LC Series, 10 ft Lift .75T capacity

$279.00

SKU: LC008-10 All Material Handling

Tags: Air Powered or Electric or Manual: Manual, Brand: All Material Handling, Capacity: 3/4 Ton, Chain Hoists, Equipment, Equipment or Parts: Equipment, Headroom: 12.6", Hoists & Winches, Lever Length: 11.4", Lift: 10', Manual Hoist Option: Lever, Overload Device: Yes, Reeving: 1 Part Reeving
Get a Quote

3/4 Ton LC Series Lever Chain Hoists

Looking for an affordable lever hoist with all the best features? All Material Handling’s LC series lever chain hoist offers exceptional quality and value. The LC008-10 offers a 3/4 ton lifting capacity with a 10 foot lift. Other capacities are available, ranging from ¾ ton to 6 tons and in standard lifts of 5, 10, and 20 ft.

AMH LC Series Lever Chain Hoist Features

Model #LC008-10 features ¾ ton capacity and 10 feet of lift.  All Model LC’s feature grade 80 zinc plated alloy chain. Every unit is proof tested at minimum of 1.25 WLL and shipped with a load test certificate as well as an operation manual in English, Spanish and French. Other features of the .75 ton LC008-10 chain hoist include:

  • Easy One Hand Operation & Setup - Short ratchet strokes with a non-slip rubber grip lever and 360 degrees rotation requires minimal space for operation and requires 20-30% less pull force than others.
  • Operation in any orientation is assured by the horseshoe-shaped chain guard, keeping the load chain in contact with the lift wheel.
  • Superior internal parts are heat-treated for strength and reliability. All gearing is fully enclosed to protect from contamination and the lift-wheel is machined for smooth operation.
  • Automatic Weston-style mechanical load brake with double pawls and asbestos-free brake discs never require adjustment. The brake will react to inertia by descending the load (regardless of operator setting).
  • Operational Overload Protection at approximately 175% WLL (working load limit)
  • Meets industry standards, including ASM B30.21, OSHA, NASA-STD-8719.9

AMH LC Series Lever Chain Hoists for Sale

Shupper-Brickle Equipment is an authorized distributor for All Material Handling. Contact us for hoist sales, service or LC series lever chain hoist upgrades such as:

  • Shipyard hook option
  • Custom chain lifts or bulk chain
  • Optional overload protection device

To place your order for a .75 ton capacity LC Series lever chain hoist, contact us here or call 800-642-7263.

Don’t see what you need? With 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or service. We provide hoist repairs at your location in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.
