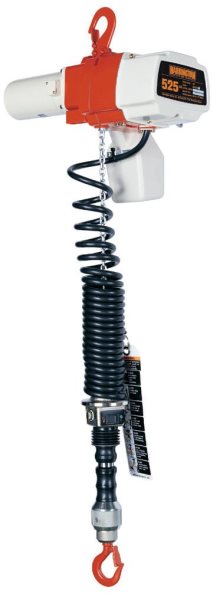

ED525DA ED Single Phase Hoist 525 lb Capacity, 6 ft lift, 44 FPM lifting speed (Dual Adjustable)


SKU: ED525DA Harrington Hoists

Harrington ED Series Electric Chain Hoists

Harrington ED series electric chain hoists offer a powerful, versatile tool with a variety of options, including low headroom designs and variable lift speeds. The convenience of the single-phase power makes this chain hoist an ideal choice for both commercial and industrial applications.

The ED-DA model features a one-of-a-kind cylinder control. This in-line handgrip, which is part of the complete hook block, allows up/down control to become a single-handed operation. The operator’s free hand can then guide and position the load with reduced effort and increased accuracy. Harrington’s ED series hoists are available in capacities that range from 125 lbs to 1050 lbs, with a standard 10’ lift, and voltage of 120-1-160. A plastic chain container is standard. This is the ED525DA model that has a 525 lb capacity, 6 ft of lit, dual adjustable lifting speeds and the cylinder control.

Features of the Harrington ED-DA Chain Hoists

Harrington’s ED electric hoist is a quick-lifting, ergonomic, single-phase professional tool. Its single-handed operation gives the operator a free hand to safely guide and position the load.

Model #ED525DA features 525 lb capacity, 6 ft of lift, and dual adjustable lifting speeds with cylinder control (high speed 44 FPM, low speed: 10 FPM). Other key features include:

  • Double Braking System provides extra safety with a Weston-style mechanical load brake and a regenerative brake. Standard upper limit switch prevents overlifting.
  • Compact Design for easy installation and storage, lightweight & low headroom.
  • Heavy Duty Motor – DC motor with rectifier for AC current reduces weight, generates less heat and maintains duty cycles.
  • Suspension Options include standard hook mount or an optional trolley mount.
  • Benefits of the Cylinder Control (DA) Models include In-Line Handgrip for one-handed operation, Removable Bottom Hook, and High/Low Speed selection on an easy touch rocker switch above the handgrip.

Buy Harrington Hoists from Shupper-Brickle

As an authorized distributor for Harrington Hoists, we sell and service all Harrington hoists including the 525 LB ED-DA dual speed chain hoist with cylinder control. Contact us for hoist and crane sales, comprehensive services, expert engineering, special features and upgrades such as:

  • Trolley Mounting
  • Additional lift or pendant length
  • Power supply length over 16’ standard

Call 800-642-7263 or contact us through this website to place your order for the Harrington ED525DA single phase chain hoist.

Don’t see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or related services, including OSHA inspections and turn-key installations. We provide hoist repairs at your facility in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.

ED Series Electric Chain Hoist Downloads

Check out these helpful downloads for additional information on Harrington’s ED series of electric chain hoists.

Model ED Catalog with Specs and Dimensions
Model ED Manual with Parts Breakout
Model ED Full Owners Manual
