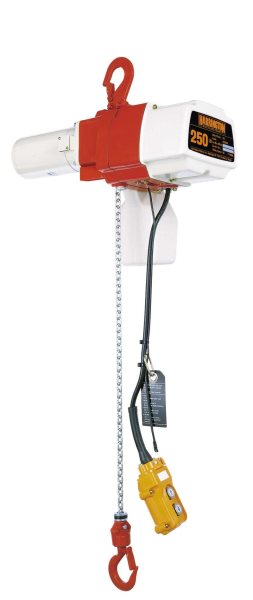

ED350DS ED Single Phase Hoist 350 lb Capacity, 10 ft lift, 66 FPM lifting speed (Dual Speed)


SKU: ED350DS Harrington Hoists

Harrington Single Phase Electric Chain Hoists

Harrington ED series electric chain hoists offer a powerful, versatile tool with a variety of options. It is light and portable, offering just the right amount of power and speed flexibility for hoisting lighter loads. The convenience of single-phase power makes this electric chain hoist ideal for both commercial and industrial applications.

Harrington's ED series hoists are available in capacities that range from 125 lbs to 1050 lbs, with a standard 10’ lift, and voltage of 120-1-160. A plastic chain container is standard. The ED350DS is Harrington’s 350 lb capacity model with 10 ft of lift and dual lifting speeds.

Key Features of Harrington's ED Electric Chain Hoists

Harrington’s single phase ED series electric chain hoists are quick-lifting speed demons. The hoists have a compact DC motor and offer a smooth, quiet operation.

Model #ED350DS features 350 lb capacity, 10 ft of lift, and dual speed lifting (high speed 66 FPM, low speed: 13 FPM). It is available in a variety of configurations with key features that include:

  • Double Braking System provides extra safety with a Weston-style mechanical load brake and a regenerative brake. Standard upper limit switch prevents overlifting.
  • Compact Design for easy installation and storage, lightweight & low headroom.
  • Heavy Duty Motor – DC motor with rectifier for AC current reduces weight, generates less heat and maintains duty cycles.
  • Suspension Options include standard hook mount or an optional trolley mount.
  • Dual Speed (DS) Models offer speed flexibility. Low speed adjustable from 0 to 100% of maximum speed by setting the screw inside the pendant. Standard pendant with 2 button momentary contacts and pendant drop 3’ less than lift.

Shop Single Phase Electric Chain Hoists

Shupper-Brickle Equipment is an authorized distributor for Harrington Hoists. We proudly sell and service all Harrington hoist models including the ED350DS single phase electric chain hoist with 350 lb lifting capacity. Our experienced sales engineers can assist with special features or upgrades such as:

  • Trolley Mounting
  • Additional lift or pendant length
  • Power supply length over 16’ standard

If you are ready to order the Harrington ED350DS single phase, dual adjustable speed chain hoist, contact us through this website or call 800-642-7263.

Don’t see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or related services, including OSHA inspections and turn-key installations. We provide hoist repairs at your facility in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.

Harrington ED Series Electric Chain Hoist Downloads

For additional information on Harrington’s single phase electric chain hoists check out these downloadable resources.

Model ED Catalog with Specs and Dimensions
Model ED Manual with Parts Breakout
Model ED Full Owners Manual
