ED1050DSA ED Single Phase Hoist 1050 lb Capacity, 10 ft lift, 22 FPM lifting speed (Dual Speed Adjustable Infinity)


SKU: ED1050DSA Harrington Hoists

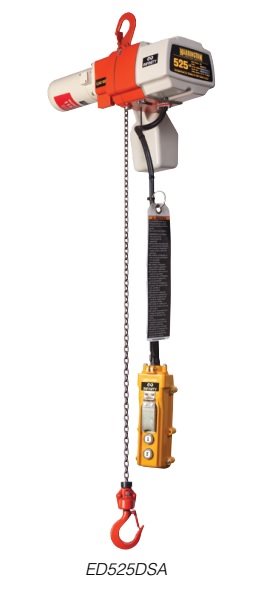

ED Electric Chain Hoists by Harrington

Harrington ED series electric chain hoists offer a powerful, versatile tool with low headroom designs, variable lifting speeds and a variety of options. The convenience of single-phase power makes this hoist ideal for both commercial and industrial applications. The infinity pendant control is easy to use and provides precise load positioning for small and awkward loads.

The ED series of electric chain hoists from Harrington Hoists are available in capacities of 125 lbs to 1050 lbs, with a standard 10’ lift, and voltage of 120-1-160. A plastic chain container is standard. This is the ED1050-DSA with 1050 lb capacity, 10 ft of lift, dual adjustable lifting speeds and the infinity pendant.

Features of Harrington’s ED-DSA Series Hoists

Harrington’s ED-DSA electric chain hoist is a quick-lifting, single-phase power tool with a compact DC motor that reduces weight, generates less heat, and maintains duty cycles to keep production moving.

Model #ED1050DSA features 1050 lb capacity, 10 ft of lift, and dual adjustable lifting speeds with infinity pendant (high speed: 22 FPM, low speed: 6 FPM). Other key features include:

  • Double Braking System provides extra safety with a Weston-style mechanical load brake and a regenerative brake. Standard upper limit switch prevents overlifting.
  • Compact Design for easy installation and storage, lightweight & low headroom.
  • Heavy Duty Motor – DC motor with rectifier for AC current reduces weight, generates less heat and maintains duty cycles.
  • Suspension Options include standard hook mount or an optional trolley mount.
  • Benefits of the Dual Speed Infinity (DSA) Models include customizable Speed Adjustment and the Heavy Duty Metal Hinged Cover protects the pendant knobs from damage.

Buy Harrington Hoists from Shupper-Brickle

As an authorized distributor for Harrington Hoists, we sell and service all Harrington hoists including the 1050 LB ED-DSA dual speed chain hoist with infinity pendant. Contact us for hoist and crane sales, comprehensive services, expert engineering, special features and upgrades such as:

  • Trolley Mounting
  • Additional lift or pendant length
  • Power supply length over 16’ standard

Call 800-642-7263 or contact us through this website to place your order for the Harrington ED1050DSA single phase chain hoist.

Don’t see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or related services, including OSHA inspections and turn-key installations. We provide hoist repairs at your facility in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.

Harrington ED Chain Hoist Downloads

Check out these helpful downloads for additional information on Harrington’s ED series of electric chain hoists.

Model ED Catalog with Specs and Dimensions
Model ED Manual with Parts Breakout
Model ED Full Owners Manual
