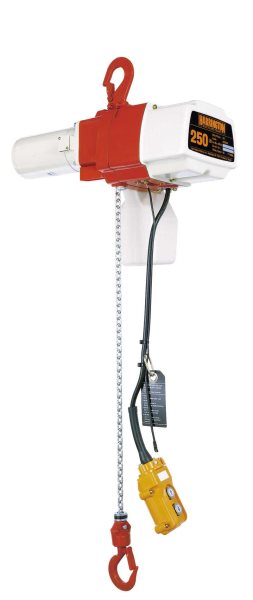

ED1050DS ED Single Phase Hoist 1050 lb Capacity, 10 ft lift, 22 FPM lifting speed (Dual Speed)


SKU: ED1050DS Harrington Hoists

Harrington Electric Chain Hoists

Harrington ED series electric chain hoists offer a powerful, versatile tool with a variety of options. They are super lightweight and portable, offering just the right amount of power and speed flexibility for lifting lighter loads. The convenience of single-phase power makes this hoist ideal for both commercial and industrial applications.

ED series hoists are available in capacities of 125 lbs to 1050 lbs, with a standard 10’ lift, and voltage of 120-1-160. A plastic chain container is standard. This is the ED-1050-DS with a 1050 lb capacity, 10 ft of lift and dual speed lifting.

Electric Chain Hoist Features

Model #ED1050DS features 1050 lb capacity, 10 ft of lift, and dual speed lifting (high speed 22 FPM, low speed: 6 FPM). It’s available in a variety of configurations with key features that include:

  • Double Braking System provides extra safety with a Weston-style mechanical load brake and a regenerative brake. Standard upper limit switch prevents overlifting.
  • Compact Design for easy installation and storage, lightweight & low headroom.
  • Heavy Duty Motor – DC motor with rectifier for AC current reduces weight, generates less heat and maintains duty cycles.
  • Suspension Options include standard hook mount or an optional trolley mount.
  • Dual Speed (DS) Models offer speed flexibility. Low speed adjustable from 0 to 100% of maximum speed by setting the screw inside the pendant. Standard pendant with 2 button momentary contacts and pendant drop 3’ less than lift.

Buy Harrington Electric Chain Hoists

Shupper-Brickle Equipment is an authorized distributor for Harrington Hoists. We sell and service all Harrington hoist models including the ED1050DS single phase electric chain hoist with 1050 lb lifting capacity. We can assist with special features or upgrades such as:

  • Trolley Mounting
  • Additional lift or pendant length
  • Power supply length over 16’ standard

Place your order for Harrington’s ED1050DS single phase, dual adjustable speed electric chain hoist through this website or by calling 800-642-7263.

Don’t see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or related services, including OSHA inspections and turn-key installations. We provide hoist repairs at your facility in the Mid-Atlantic States or in our hoist repair workshop in Clarksburg, NJ.

Helpful Harrington ED Chain Hoist Downloads

If you are looking for more information on Harrington’s ED Series Electric Chain Hoists, click on the helpful downloadable resources below.

Model ED Catalog with Specs and Dimensions
Model ED Manual with Parts Breakout
Model ED Full Owners Manual
