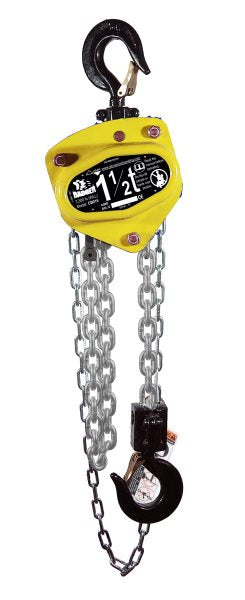

All Material Handling's model CB hand chain hoist is lightweight, low headroom and durable at sharp pricing.
The CB Series is available in capacities of 1/2-Ton to 10 Tons and in standard lifts of 10, 20 or 30 ft.
Designed for easy disassembly and fast maintenance
Operation from either side (or even above), since the hand chain opening is formed with a radius
Superior internal parts are heat-treated for strength & reliability, all gearing is fully enclosed to protect from contamination, the lift wheel is machined for smooth operation
Weston-style mechanical load brake with double pawls and asbestos-free brake discs that never require adjustment
Drop forged Alloy hooks are designed to stretch before chain failure when overloaded, the top hook articulates to aid in rigging
Optional Overload Protection at approximately 175% WLL
Meets industry standards including ASME B30.21, OSHA, NASA-STD-8719.9
Model #CB010-10-08 features 1 Ton capacity and 10 ft of lift. All model CB's feature grade 80 zinc plated alloy chain. Every unit is proof tested at a minimum of 1.25 the WLL and shipped with a load test certificate as well as an operation manual in English, Spanish and French.
Ask us if you need:
- An unchained unit or a customized lift
- Optional overload protection device
To place your order, contact us through this website or call 800-642-7263
Don't see what you need? With over 50 years in the business, we know hoists! Contact us for hoists, overhead cranes or comprehensive services, such as OSHA inspections and turn-key installation. We provide equipment diagnosis and repair at your facility in the Mid-Atlantic States or in our repair workshop in Clarksburg, NJ.
